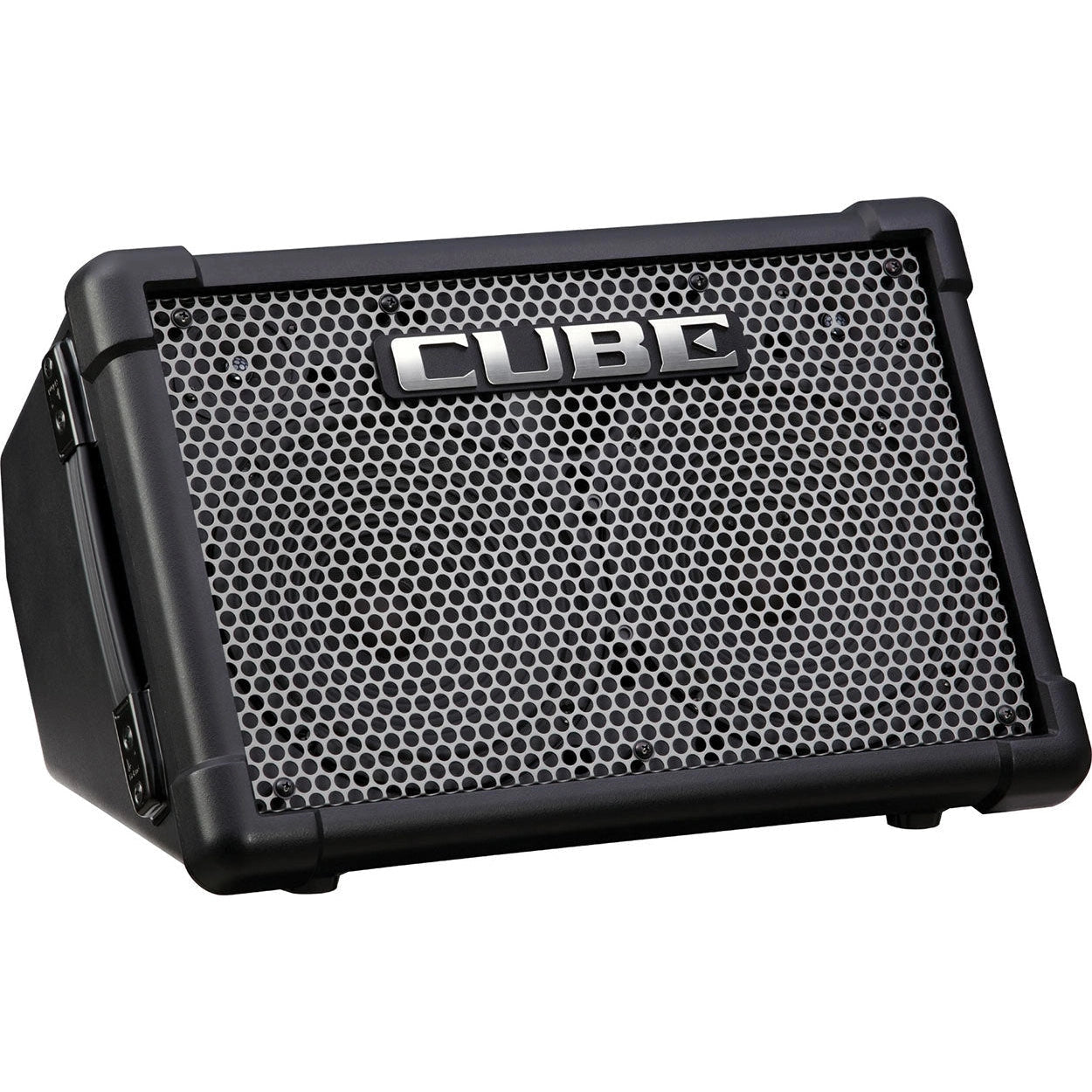

Roland Street Cube EX 50 Watt
Roland Street Cube EX 50 Watt
HIGH-QUALITY SOUND FOR PERFORMERS ON THE GO
With its compact size and battery-powered operation, Roland’s CUBE Street was a huge hit among traveling musicians. Now, the new CUBE Street EX infuses the popular mobile amp with a huge performance upgrade that delivers more projection, more channels, and more versatility. 50 big watts of power and a stereo speaker system with dual woofers and tweeters provide clean, punchy sound for larger crowds, while four independent channels offer abundant connections for a variety of mics and instruments. Detailed sound adjustment is available with separate EQ and reverb controls, and great guitar tones are dialed in easily with the onboard COSM amps. Selectable power modes provide up to 20 hours of operation with eight AA batteries, and two CUBE Street EX units can be linked together for more sound coverage if needed. And with i-CUBE LINK, you can even plug in your iPhone or iPad to play backing music and record your performances!
Maximum Power Output50 W (25 W + 25 W)Nominal Input Level (1 kHz)MIC/INSTRUMENT INPUT: -50/-10 dBu
MIC/GUITAR INPUT: -10 dBu
LINE IN: -10 dBu
AUDIO IN (i-CUBE LINK): -10 dBu
AUX IN/STEREO LINK IN: -10 dBuNominal Output Level (1 kHz)LINE OUT (L/MONO, R)/STEREO LINK OUT (L, R): -10 dBuSpeakersWoofer: 20 cm (8 inches) x 2
Tweeter: 5 cm (2 inches) x 2ControlsPOWER switch
BATTERY CHECK/MUTE button
OUTPUT POWER switch (ECO, NORMAL, MAX)
[MIC/INSTRUMENT]
SELECT switch (MIC, INST)
VOLUME knob
BASS knob
MIDDLE knob
TREBLE knob
REVERB knob
[MIC/GUITAR]
TUNER button
TYPE switch (A-GUITAR, ACOUSTIC SIM, CLEAN, CRUNCH, LEAD, MIC)
VOLUME knob
BASS knob
MIDDLE knob
TREBLE knob
CHORUS/DELAY knob (CHORUS, DELAY)
REVERB knob
[AUDIO IN]
VOLUME knob
[LINE IN]
VOLUME knob
BATTERY CHECK/MUTE button
STEREO LINK/LINE OUT switchIndicatorsPOWER
BATTERY
BATTERY CHECK/MUTE
TUNERConnectors[MIC/INSTRUMENT]
INPUT jack: Combo type (XLR type, 1/4-inch TRS phone), balanced
FOOT SW (REVERB) jack: 1/4-inch TRS phone type
[MIC/GUITAR]
INPUT jack: Combo type (XLR type, 1/4-inch TRS phone), unbalanced
FOOT SW (TIP: CHORUS/DELAY, RING: REVERB) jack: 1/4-inch TRS phone type
[AUDIO IN]
STEREO AUDIO IN (i-CUBE LINK) jack: 4-pole miniature phone type
[LINE IN]
STEREO LINE IN (L/MONO, R) jacks: 1/4-inch phone type
AUX IN/STEREO LINK IN jack: 1/4-inch phone type
LINE OUT (L/MONO, R)/STEREO LINK OUT (L, R) jacks: 1/4-inch phone type
PHONES jack: Stereo 1/4-inch phone type
DC IN jackPower SupplyAC adaptor (DC 13 V)
Alkaline battery (AA, LR6) x 8
Rechargeable Ni-MH battery (AA, HR6) x 8Current Draw730 mAExpected battery life under continuous use[OUTPUT POWER switch: MAX (Maximum power output: 50 W)]
Alkaline battery: Approximately 4 hours
Rechargeable Ni-MH battery: Approximately 5 hours (*1)
[OUTPUT POWER switch: NORMAL (Maximum power output: 25 W)]
Alkaline battery: Approximately 8 hours
Rechargeable Ni-MH battery: Approximately 10 hours (*1)
[OUTPUT POWER switch: ECO (Maximum power output: 10 W)]
Alkaline battery: Approximately 16 hours
Rechargeable Ni-MH battery: Approximately 20 hours (*1)
*1 When using batteries having a capacity of 2,450 mAh.
* These can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.AccessoriesOwner's manual
AC adaptor
Power cord
Mini cable (4-pole miniature phone type)Options (sold separately)Carrying Case: CB-CS2
Footswitch (BOSS FS-5U, BOSS FS-6, BOSS FS-7)
Speaker Stand: ST-A95SIZE AND WEIGHTWidth490 mm
19-5/16 inchesDepth341 mm
13-7/16 inchesHeight305 mm
12-1/16 inchesWeight7.4 kg
16 lbs. 6 oz.
